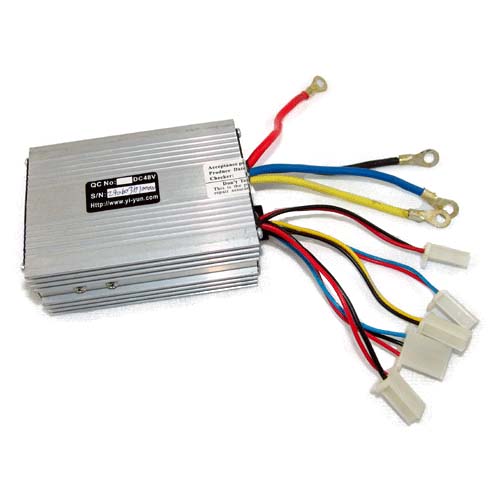

LB37 Controller Product Specification |
TNC Scooters |
LB37 - Technical Parameters
|
Rated Voltage
|
48 Volts
|
|---|---|
|
Rated Current
|
30 Amps
|
|
Rated Motor
|
1000 Watts
|
|
Rated Charger
|
≤ 3.0 Amps
|
|
Conversion Efficiency
|
95%
|
|
Under Voltage Protection
|
42 Volts
|
|
Throttle
|
Sold Separately (Twist, Thumb, or Foot Throttle) Hall Effect
|
|
Dimensions
|
11.1 cm x 6.9 cm x 3.8 cm
|
LB37 - Protection Circuits
|
Under Voltage Protection
|
When battery voltage falls to a specified
value, the controller cuts off battery output preventing over discharge and extending battery life. (The cutoff value is approximately 42 Volts.) |
|---|---|
|
Power Cut Off During Braking
|
When underway the brake switch signals the
controller to cut the battery output. |

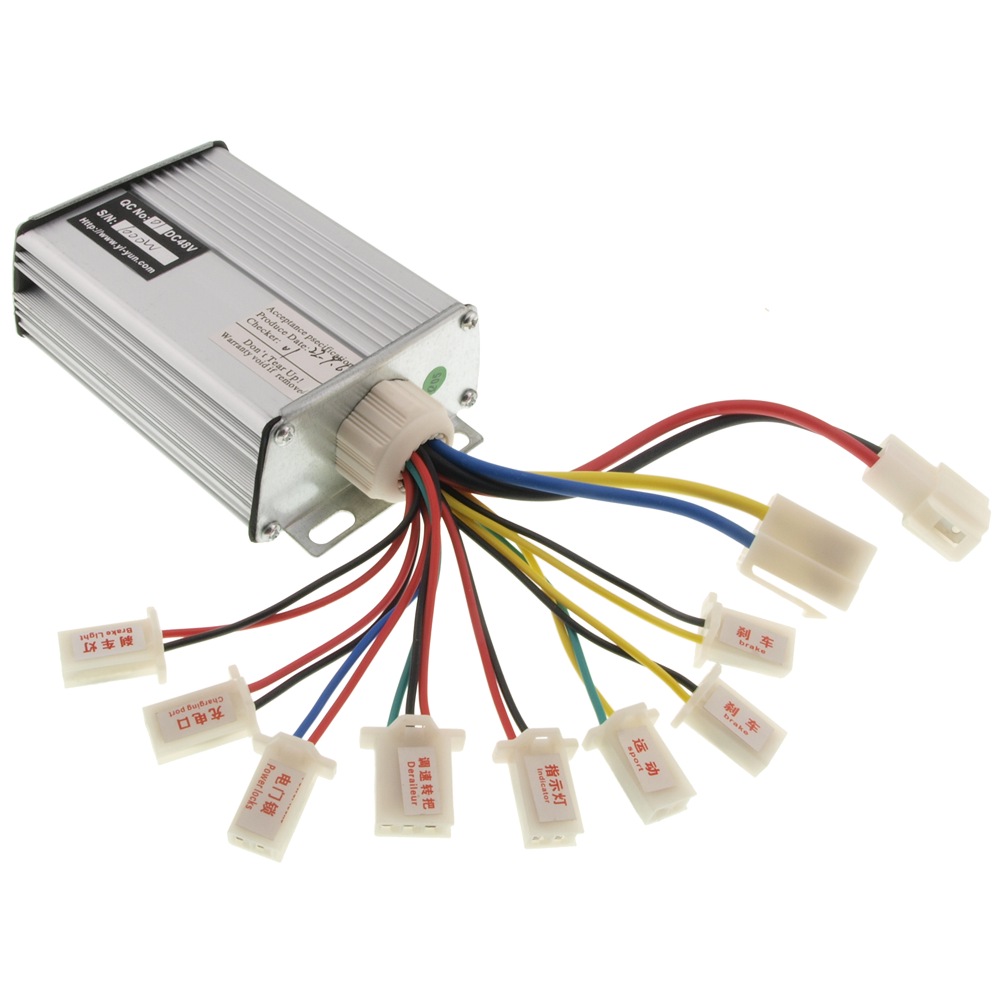

LB37 - Installation & Wiring
|
Power Connector
Connector Plug: See NOTES: |
|
|---|---|
|
Motor Connector
Connector Plug: |
|
|
Lock (Power Switch) Connector
Connector Plug: DJ7021A-2.8-11 |
|
|
Derailleur
(Throttle) Connector
Connector Plug: |
|
|
Charger Connector
Connector Plug: DJ7031A-2.8-21 Optional Connection (must have alternate way to charge battery if not used) |
|
|
Pilot (Power) Light Connector (48 Volt)
Connector Plug: DJ7021A-28.11 Optional Connection |
|
|
Brake Switch Connector
Connector Plug: DJ7021A-2.8-11 Optional Connection |
|
|
Brake Switch Connector
Connector Plug: DJ7021A-2.8-11 Optional Connection |
|
|
Brake Light Connector (48 Volt)
Connector Plug: DJ7021A-2.8-11 Optional Connection |
|
|
Sport Switch Connector
Connector Plug: DJ7021A-2.8-11 Optional Connection (connect to switch for sport or normal mode) |
 |
NOTES
|
|
