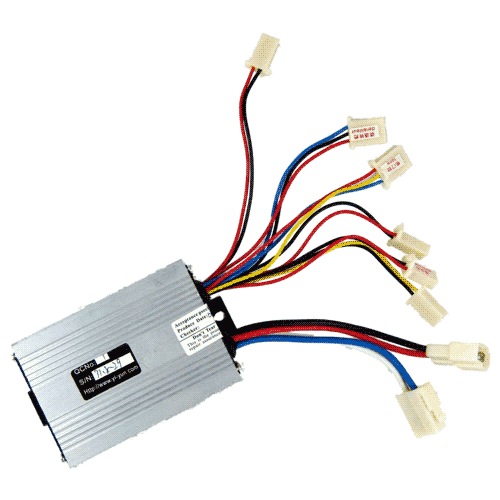

YK48-3 Controller Product Specification |
TNC Scooters Sales - Service - Parts |
YK48-3 - Technical Parameters
|
Rated Voltage
|
36 Volts
|
|---|---|
|
Rated Motor
|
Up To 500 Watts
|
|
Rated Current
|
30 Amps
|
|
Conversion Efficency
|
95%
|
|
Under Voltage Protection
|
31.0 +/- 0.5 Volts
|
|
Dimensions
|
9.8 cm x 6.9 cm x 3.8 cm
|
YK48-3 - Installation & Wiring
|
Power Connector
Connector Plug: DJ7022-6.3-11 See Note 1 |
|
|---|---|
|
Motor Connector
Connector Plug: DJ7022-6.3-21 |
|
|
Lock Connector -
Forward / Reverse Connector Plug: DJ7021A-2.8-31 See Notes 2 & 3 |
|
|
Derailleur
Connector Plug: DJ7021A-2.8-31 |
|
|
Charger Connector
Connector Plug: DJ7021A-2.8-21 |
|
|
Brake Signal Connector
Connector Plug: DJ7021A-2.8-21 |
|
|
Connector Plug: DJ7021A-2.8-21 |
|
|
Brake Connector
Connector Plug: DJ7021A-2.8-21 |
|
NOTES
|
1. Make the Battery connector your last connection. 2. Connect the BLUE and YELLOW wires on the Lock Connector to turn the controller ON in the Forward Direction. 3. Connect the BLUE, YELLOW, and RED wires on the Lock Connector to turn the controller ON in the Reverse Direction. |
