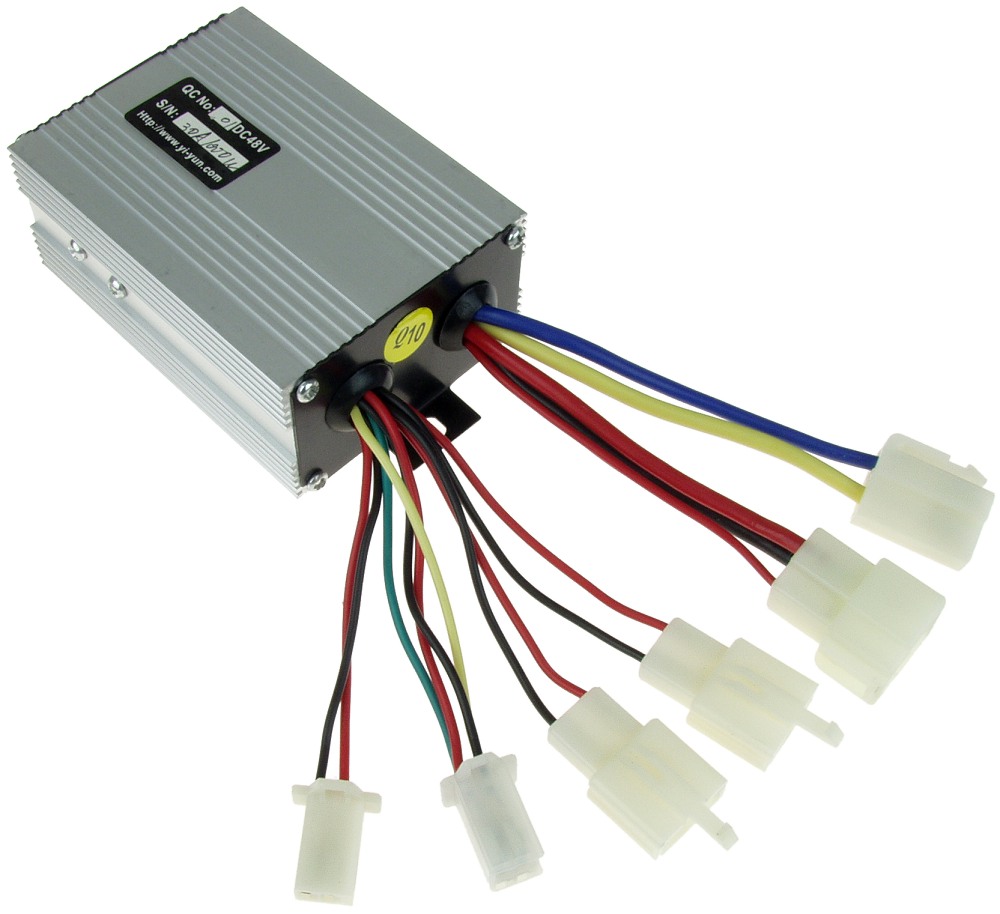

MX4830-4 Controller
Product Specification
TNC Scooters
Sales - Service - Parts

MX4830-4 - Technical Parameters

Rated Voltage
48 Volts
Rated Current
30 Amps
Rated Motor
Up To 1000 Watts
Under Voltage Protection
41.0 Volts +/- 0.5 Volts



MX4830-4 - Protection Circuits

Under Voltage Protection
When battery voltage falls to a specified
value, the controller cuts off battery output
preventing over discharge and extending
battery life. (The cutoff value is
approximately 41.0 volts +/- 0.5 volts.)
Power Cut Off During Braking
When underway the brake switch signals the
controller to cut the battery output.



MX4830-4 Installation & Wiring

Power Connector
Motor Connector
Connector Plug: DJ7022-6.3-21

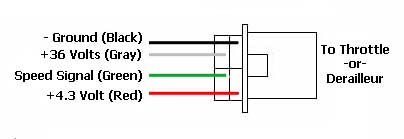

Throttle Connector
Charger Connector
Brake Lever Connector #1
Connector Plug: DJ7031A-2.8-21
Brake Lever Connector #2
Connector Plug: DJ7031A-2.8-21
