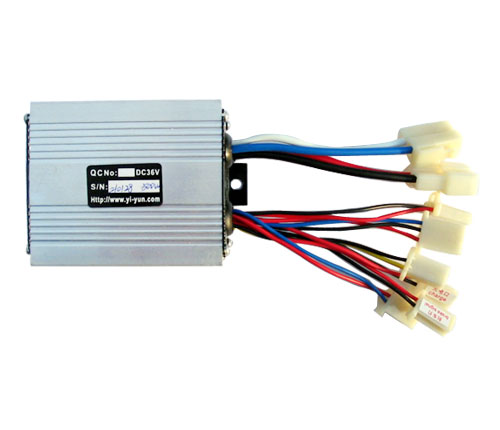

LBD14 Controller
Product Specification
|
TNC Scooters |
|
|
LBD14 - Technical Parameters
Rated Voltage
|
24 Volts
|
Rated Current
|
30 Amps
|
Rated Motor
|
350 - 750 Watts
|
Rated Charger
|
≤ 3.0 Amps
|
Conversion Efficency
|
95%
|
Under Voltage Protection
|
20.5 Volts
|
Speed Control
|
Available
(Turn or Thumb Throttle)
|
Brake Indicator
|
Available
|
Power Indicator
|
Available
|
Dimensions
|
8.5 cm x 6.9 cm x 3.8 cm
|
|
LBD14 - Protection Circuits
Under Voltage Protection
|
When battery voltage falls to a specified
value, the controller cuts off battery output
preventing over discharge and extending
battery life. (The cutoff value is
approximately 20.5 volts, but varies
drastically from controller to controller.)
|
Power Cut Off During Braking
|
When underway the brake switch signals the
controller to cut the battery output.
|
|
LBD14 - Installation & Wiring
Power Connector
Connector Plug: DJ7022-6.3-11
See NOTES:
|
|
Motor Connector
Connector Plug: DJ7022-6.3-21
|
|
Lock Connector
Connector Plug: DJ7021A-2.8-11
|
|
Derailleur Connector
Connector Plug:
|
|
Charger Connector
Connector Plug: DJ7031A-2.8-21
|
|
Brake Signal Connector
Connector Plug: DJ7021A-2.8-11
|
|
Pilot Light Connector
Connector Plug: DJ7021A-28.11
|
|
Brake Connector
Connector Plug: DJ7021A-2.8-11
|
|
|
NOTES
Make the Battery Connector the last connection to connect.
The wire comming from the battery should be fuse protected.
|
|
