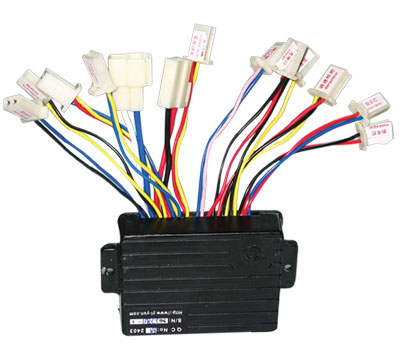

LB33C Controller Product Specification |
TNC Scooters |
LB33C - Technical Parameters
|
Rated Voltage
|
24 Volts
|
|---|---|
|
Rated Current
|
30 Amps
|
|
Rated Motor
|
160 - 300 Watts
|
|
Rated Charger
|
≤ 3.0 Amps
|
|
Conversion Efficency
|
95%
|
|
Under Voltage Protection
|
20.5 Volts
|
|
Speed Control
|
Available
(Turn or Thumb Throttle) |
|
Brake Indicator
|
Available
|
|
Power Indicator
|
Available
|
|
Dimensions
|
9.2 cm x 6.9 cm x 2.3 cm
|
LB33C - Protection Circuits
|
Under Voltage Protection
|
When battery voltage falls to a specified
value, the controller cuts off battery output preventing over discharge and extending battery life. (The cutoff value is approximately 20.5 volts, but varies drastically from controller to controller.) |
|---|---|
|
Power Cut Off During Braking
|
When underway the brake switch signals the
controller to cut the battery output. |
LB33C - Installation & Wiring
|
Power Connector
Connector Plug: DJ7022-6.3-11 See NOTES: |
|
|---|---|
|
Motor Connector
Connector Plug: DJ7022-6.3-21 |
|
|
Turn Signal (1) Connector
Connector Plug: DJ7021A-2.8-21 |
|
|
Turn Signal (2) Connector
Connector Plug: DJ7021A-2.8-21 |
|
|
Lock Connector
Connector Plug: |
|
|
Head Lamp Connector
Connector Plug: DJ7021A-2.8-21 |
|
|
Lamp Switch Connector
Connector Plug: DJ7021A-2.8-21 |
|
|
Lock Connector
Connector Plug: DJ7021A-2.8-21 |
|
|
Charger Connector
Connector Plug: DJ7021A-2.8-21 |
|
|
Derailleur Connector
Connector Plug: DJ7031A-2.8-31 |
|
|
Brake Connector
Connector Plug: DJ7021A-2.8-21 |
|
|
Brake Signal Connector
Connector Plug: DJ7021A-2.8-21 |
|
|
Pilot Lamp Connector
Connector Plug: DJ7021A-2.8-21 |
|
NOTES
|
|
