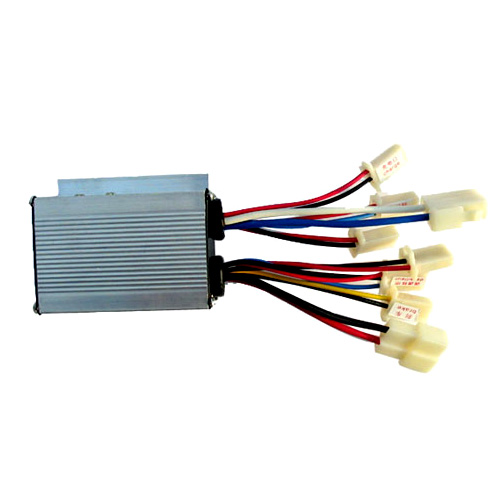

LB27 Controller Product Specification |
TNC Scooters |
LB27 - Technical Parameters
|
Rated Voltage
|
24 Volts
|
|---|---|
|
Rated Motor
|
160 - 300 Watts
|
|
Rated Current
|
10 - 30 Amps
|
|
Conversion Efficency
|
95%
|
|
Under Voltage Protection
|
20.5 Volts
|
|
Dimensions
|
7.4 cm x 4.9 cm x 3.5 cm
|
LB27 - Installation & Wiring
|
Power Connector
Connector Plug: DJ7022-6.3-11 See NOTES: |
|
|---|---|
|
Motor Connector
Connector Plug: DJ7022-6.3-21 |
|
|
Lock Connector
Connector Plug: DJ7021A-2.8-21 |
|
|
Derailleur
Connector Plug: |
|
|
Charger Connector
Connector Plug: DJ7021A-2.8-21 |
|
|
Brake Signal Connector
Connector Plug: DJ7021A-2.8-21 |
|
|
Connector Plug: DJ7021A-2.8-21 |
|
|
Brake Connector
Connector Plug: DJ7021A-2.8-21 |
|
NOTES
|
|
