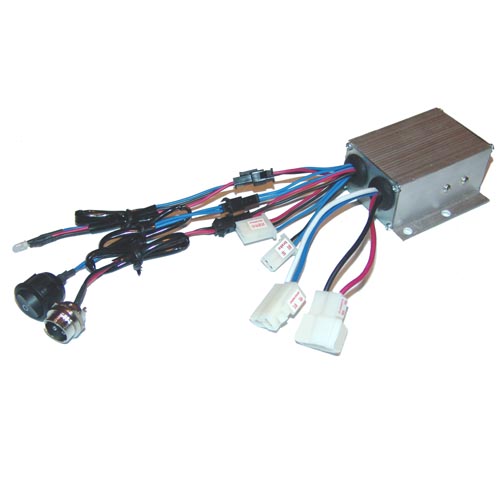

JC24-A Controller Product Specification |
TNC Scooters |
JC24-A - Technical Parameters
|
Rated Voltage
|
24 Volts
|
|---|---|
|
Rated Current
|
16 Amps
|
|
Rated Motor
|
80 Watts to 160 Watts
|
|
Rated Charger
|
≤ 3.0 Amps
|
|
Conversion Efficency
|
95%
|
|
Under Voltage Protection
|
20.5 Volts
|
|
Speed Control
|
Available
(Turn or Thumb Throttle) |
|
Brake Indicator
|
Available
|
|
Power Indicator
|
Available
|
|
Dimensions
|
70 mm x 49 mm x 35 mm
|
JC24-A - Protection Circuits
|
Current Limiting
|
This prevents the motor current from
exceeding the specified value avoiding damage to the motor and the controller due to over current conditions. |
|---|---|
|
Under Voltage Protection
|
When battery voltage falls to a specified
value, the controller cuts off battery output preventing over discharge and extending battery life. (The cutoff value is approximately 20.5 volts, but varies drastically from controller to controller.) |
|
Over Speed Prevention While Charging
|
When charging, the controller renders the
throttle temporarily inoperable, preventing mistaken manipulation. (This function is not available in some applications.) |
|
Power Cut Off During Braking
|
When underway the brake switch signals the
controller to cut the battery output. |
JC24-A - Installation & Wiring
|
Power Connector
Connector Plug: DJ7022-6.3-11 See NOTES: |
|
|---|---|
|
Motor Connector
Connector Plug: DJ7022-6.3-21 |
|
|
Derailleur Connector (Throttle)
Connector Plug: DJ7061A-2.8-31 |
|
|
Brake Lever Connector
Connector Plug: DJ7061A-2.8-21 |
|
|
Brake Lever &
Charging Connector Connector Plug: EL-2P Male Plug |
|
|
Power Switch Connector
Connector Plug: EL-2P Male Plug |
|
|
Status LED
Connector Plug: EL-2P Male Plug |
|
NOTES
|
|
