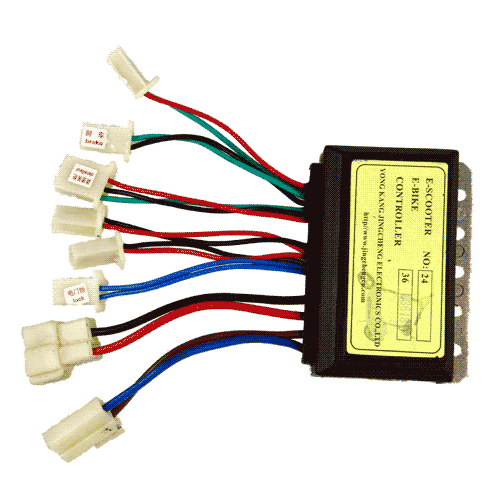

JC-116 (36 Volt) Controller Product Specification |
TNC Scooters |
JC-116 (36 Volt) - Technical Parameters
|
Rated Voltage
|
36 Volts
|
|---|---|
|
Rated Current
|
30 Amps
|
|
Rated Motor
|
Up To 500 Watts
|
|
Rated Charger
|
≤ 3.0 Amps
|
|
Conversion Efficency
|
95%
|
|
Under Voltage Protection
|
31.0 +/- 0.5 Volts
|
|
Speed Control
|
Hall Effect
(1 to 4.8 Volts) |
|
Brake Indicator
|
Available
|
|
Power Indicator
|
Available
|
|
Dimensions
|
85.7 mm x 60.3 mm x 31.7 mm
|
JC-116 (36 Volt) - Protection Circuits
|
Under Voltage Protection
|
When battery voltage falls to a specified
value, the controller cuts off battery output preventing over discharge and extending battery life. (The cutoff value is approximately 31.0 +/- 0.5 volts, but varies drastically from controller to controller.) |
|---|---|
|
Power Cut Off During Braking
|
When underway the brake switch signals the
controller to cut the battery output. |
JC-116 (36 Volt) - Installation & Wiring
|
Power Connector
Connector Plug: DJ7022-6.3-11 See Notes 1 & 2 |
|
|---|---|
|
Motor Connector
Connector Plug: DJ7022-6.3-21 |
|
|
Lock Connector
Connector Plug: DJ7031A-2.8-21 |
|
|
Derailleur Connector
Connector Plug: DJ7031A-2.8-31 |
|
|
Charger Connector
Connector Plug: DJ7031A-2.8-21 |
|
|
Brake Connector
Connector Plug: DJ7031A-2.8-21 |
|
|
Battery Indicator Connector
Connector Plug: DJ7031A-2.8-21 |
|
|
Tail Light Connector
Connector Plug: DJ7031A-2.8-21 |
|
NOTES
|
1. Make the Battery Connector the last connection to connect. 2. The wire comming from the battery should be fuse protected. |
