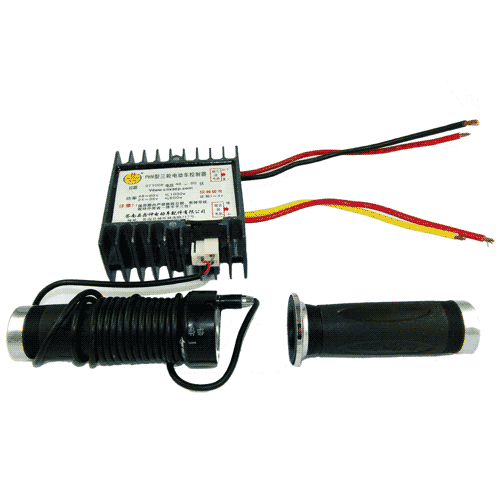

HK-60 Controller Product Specification |
TNC Scooters |
HK-60 - Technical Parameters
|
Rated Voltage
|
60 Volts
|
|---|---|
|
Rated Current
|
60 - 100 +/- 1.0 Amps
|
|
Rated Motor
|
Up to 1000 Watts
|
|
Conversion Efficency
|
95%
|
|
Under Voltage Protection
|
52.5 +/- 0.5 Volts
|
|
Speed Control
|
Hall Effect Throttle
(1 - 4 Volts) Included with controller. |
|
Dimensions
|
105mm x 115mm x 48mm (L x W x H)
|
HK-60 - Installation & Wiring
|
Battery Connector
Connector Plug: See Notes: 1 & 2 |
|
|---|---|
|
Motor Connector
Connector Plug: |
|
|

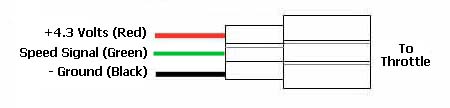

Throttle Connector
Connector Plug: |
|
NOTES
2. When connecting the controller to the battery a small spark may occur this is normal. |
